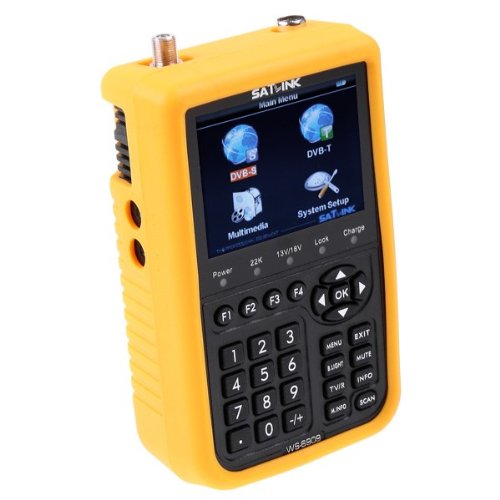

If You Are Looking For Best and Lowest Price on SATlink WS-6909 3.5" DVB-S & DVB-T Combo Satellite Signal Finder Meter. Dont Spend Your More Time! This Is Affordable And Great Deal. Now You Can Buy SATlink WS-6909 At Cheapest Price And Huge Discount. Big Save With Free Super Fast Shipping. Check Special Offer And Order SATlink WS-6909 Today To Avoid Your Disappointment.
Find The Best Place to Buy
This SATlink WS-6909 is now on sale on Amazon Fast & Free Super Saver Shipping. Click on this link to get an immediate discount!
Here are some of the great features of SATlink WS-6909 3.5" DVB-S & DVB-T Combo Satellite Signal Finder Meter
SATlink WS-6909, Ship from China by USPS, normally 7 to 12 business days to deliver.
It can at most show five channels' signal at the same menu which is very helpful for adjustment.
Supports both AV IN and AV OUT for camera, LCD, etc.
Built-in large capacity 3000mAH Li-ion battery.
Matched with a high quality protective case.
Support language: English, German, French, Portuguese, Spanish, Italian, Czech, Greek.
English user manual is included in the CD disk.
Specifications:
System capabilities
Fully DVB-S & DVB-T Comliant: Yes
Antenna input: DVB-S
Connector F type: female
Frequency range: 950MHz-2150MHz
Signal level: -65dBm~-25dBm
LNB power: 13/18V, max 350mA
LNB Switch control: 22KHz
DiSEqC: Ver 1.0/1.2
DVB-T:
Connector IEC Female 9.5mm
Frequency range: VHF and UHF
Bandwidth: 8/7/6MHz
Input impedance: 75 ohm
Demodulator: DVB-S
Front end: QPSK
Demodulation Range: 2Mbps~45Mbps
SCPC and MCPC Capable: Yes
DVB-T:
Modulation: COFDM
Constellation: QPSK,16QAM,64QAM
Transmission mode: 2K,8K
Guard interval: 1/2,1/4,1/8,1/16,1/32
FEC: 1/2,2/3,3/4,4/5,5/6,7/8
System resource:
Processor: 32bit processor (133MHz)
SDRAM: 4 * 16Mbyte
FLASH: 8Mbyte
Video decoder:
MPEG2: Main Profile @ Main Level
Data Rate: up to 15Mbits/s
Resolution: 720 * 576, 720 * 480
Video Format: PAL/NTSC/SECAM
MPEG Audio:
MPEG: MPEG 1&2
Type: Mono
Sampling rates: 32, 44.1 and 48KHz
Data Tranfer: Connector USB type
Power supply:
Li-ion Battery: 8.4V/3000mAH
Input: AC 100-240V 50/60Hz
Output: DC 12V
Plug Standard: EU
Item size: 16.5 * 9 * 4.5cm
Item weight: 454g
Package size: 26.5 * 21 * 7cm
Package weight: 1214g
Package including:
1 * WS-6909 Satellite Finder
1 * Yellow Protective Case
1 * Car Charger
1 * Power Adapter
1 * AV Cable
1 * CD
- It's with auto-protection for LNB short-circuit.
- 3.5" LCD color display, bigger menu window.
- High quality and stable performance: it's with a microprocessor controller.
- Channel picture, signal strength and signal quality can be showed on LCD Screen after you set up your local DVB-S & DVB-T Parameter.
- It shows Azimuth and Elevation, CBER/VBER, S/N, signal strength and signal lock sound alarm.
Get the Best Price for SATlink WS-6909 Lowest Price for Sale. Save on Best Deals SATlink WS-6909 3.5" DVB-S & DVB-T Combo Satellite Signal Finder Meter. Order Today with Free & Fast Shipping. Start Shopping Now!
